Square signal

		`\| Vectorized \| C \| ST \|`
`in the palette`	`on the schematic`	`\| Vectorized \| C \| ST \|`

The block forms a signal at the output from uniform rectangular pulses with the specified time and amplitude parameters:

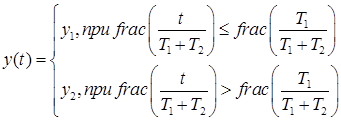

where y₁, y₂, T₁, T₂ are the properties of the block, y(t) is the output signal, t is the current model time in seconds, frac(t/(T₁+T₂)) is the fractional part.

Inputs

none

Outputs

output - output signal port.

Properties:

The duration of the 1st half-period is the time T₁, during which the output block generates the value of the first half-period.
The value of the 1st half-period is the signal y₁ sent by the block to the output during the first half-period.
The duration of the 2nd half-period is the time T₂, during which the output block generates the value of the second half-period.
The value of the 2nd half-period is the signal y₂ sent by the block to the output during the second half-period.

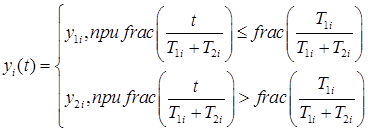

Properties can be vectors: T₁ = [T_{1 1}, T_{1 2},…,T_{1 n}], y₁ = [y_{1 1}, y_{1 2},…,y_{1 n}] и y₂ = [y_{2 1}, y_{2 2},…,y_{2 n}], the dimensions of which must be the same. In this case a vector signal will also be generated at the output:

Parameters

none

Прим.:

By default, the block generates a scalar output signal.
Named properties can be set as local model variables (submodels) in a programming language script, as global project signals using the Tools → Signals main menu item, or as external project signals using a attachable signal database.
