| Vectorized | |
| in the palette | on the schematic |
The block forms a periodic triangular signal at the output (half of the signal of the Sawtooth type and the other half is Reverse sawtooth-type signal):
Inputs
none
Outputs
- output - output signal port.
Properties:
- Span – yA (height of the full saw "tooth", signal amplitude). The amplitude of the triangular signal at the output of the block is yA/2.
- Period – the period of the triangular pulses T.
- Displacement – y0, ordinate of the base of the "tooth" (lower point) of the saw.
Parameters
none
Прим.:
- By default, the block generates a scalar output signal.
- Named properties can be set as local model variables (submodels) in a programming language script, as global project signals using the Tools → Signals main menu item, or as external project signals using an attachable signal database.
- Comparison of Sawtooth, Reverse sawtooth and Triangular signal Blocks:

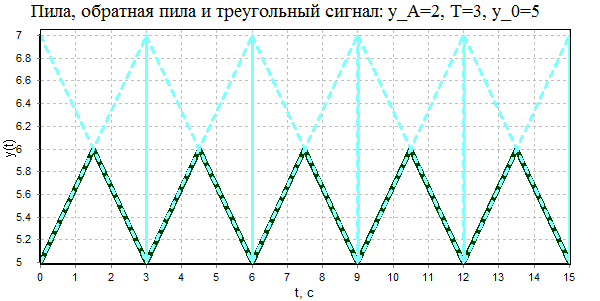

Рисунок 1. Comparison of sawtooth signals
