M of N
 |
 |
| Vector | C | ST | |
| in the palette | on the schematic |

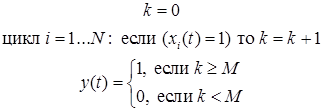

The block returns the boolean 1 if the number of inputs on which the value is equal to the boolean 1 is greater than or equal to a set number:
where xi(t) is the scalar value at the i-th input to the block, y(t) is the output logic signal, k is the internal variable of the block to calculate the number of input signals equal to 1.
where xi(t) is the scalar value at the i-th input to the block, y(t) is the output logic signal, k is the internal variable of the block to calculate the number of input signals equal to 1.
Inputs
- u_n - the n-th inut port. The number of ports is configured in the block properties.
Outputs
- Y - operation result.
Properties
- Number of ports - number of input ports N.
- Number of True values for triggering - the number of M input signals equal to one, when reached, a logical one is formed at the output.
Parameters
none
