Algorithm input

| Vector | C |
in the palette on the schematic

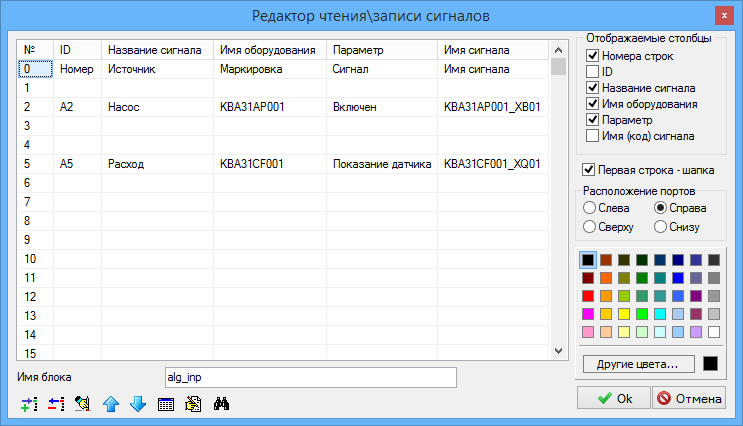

The block reads data from the local list of project signals (or from the list of signals of the connected database). When you double-click on the block, the editor of the list of variables to be read appears:

The name of a variable is set in the Signal name field. Each output of the block corresponds to its own signal.

Assigning table fields

  • No. — the serial number of the signal (and, accordingly, the output of the block) is set.
  • ID — signal (output) identifier.
  • Source — a description of the "point of departure" of the signal (where the signal comes from).
  • Marking — the marking of the signal (or signal source).
  • Signal (setpoint) — designation or name of the signal. It is used in the creation of algorithms for the formation of signals (setpoints) from the control units of valves, motors, etc.
  • Signal name — the name of the variable read from the database.
The name of the block is set at the bottom. On the right, there are options that you can use to customize the appearance of the block on the schematic, the display of the header, and the location of the block ports.

Properties

  • Selection of maximum (OR).
  • Algorithm name.
  • Translate to the executive system.
  • Translate from the executive system.
  • Overwrite the signal after restart.

Parameters

none
