| Vector | C | |
| в палитре | на схеме |
The block outputs the serial number of the first "1" in the vector of binary signals received at the input.
Входные порты
- vector - port for the input signal.
Выходные порты
- output - the serial number of the first "1" in the input vector.
Свойства
none
Параметры
none
Прим.: the block also works in dynamics, changing its output accordingly, when the vector at the input changes. Most often the block is paired with the Dynamic sampling block. Example demonstrating the operation of the block:

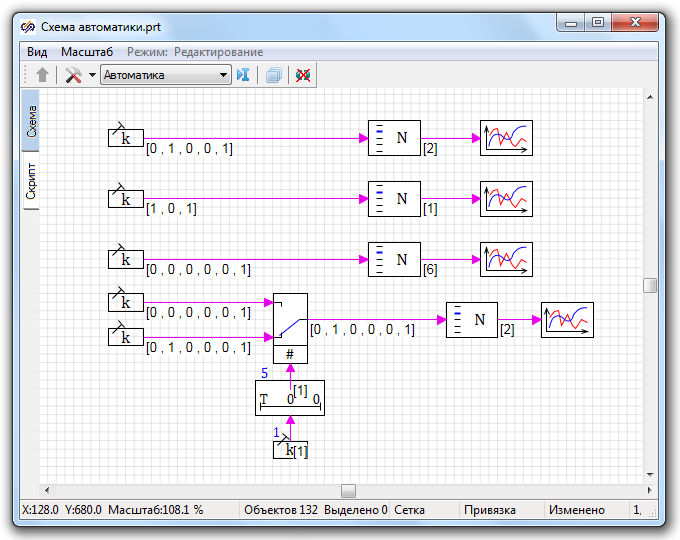

Рисунок 1. Example of block operation.
