Planetary gearbox with two planet gears

| C |
in the palette on the schematic
The block is designed to simulate a planetary gearbox with two planet gears with a constant gear ratio and constant efficiency. The kinematic diagram of the gearbox is shown in the figure (Figure 1).


Figure 1. Kinematic diagram of a planetary gearbox with two planet gears
The gearbox consists of:
  • Ring gear R with the number of teeth ZR
  • Sun gear S with the number of teeth ZS
  • Internal and external planet gears PI and PE with tooth numbers ZPI and ZPE
  • Carrier C
The block is described by the following kinematic relation:

where:
  • ωS – angular speed of the sun gear, rad/s
  • ωC – angular speed of the carrier, rad/s
  • ωR – angular speed of the ring gear, rad/s

To meet the requirement of the kinematic ratio, the block solves the coupling equation. A detailed description of the approach for the the gear (speed) ratios simulation is given on the page Simulating transmission. A detailed description of the approach for simulation losses in the gearing is given on the page Gearbox efficiency simulation.

The gear ratio of the gearbox from the sun S to the carrier CUSC with the fixed ring gear R is determined by the formula:

where:
  • ZS – number of sun teeth
  • ZR – number of the gearbox ring gear teeth
The gear ratio of the gearbox from the ring gear R to the carrier CURC with the fixed sun gear S is determined by the formula:

The number of teeth of the internal and external planet gears ZPI and ZPE is taken into account only when checking the so-called "assembly" condition of the gearbox.

A block is a submodel that includes blocks (Figure 2):

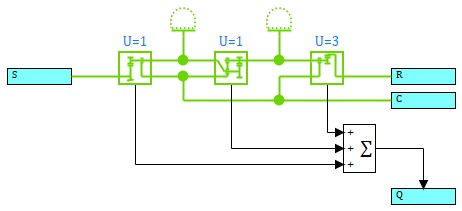

Figure 2. Model of planetary gearbox with two planet gears

Next to the block, the gear ratio of the gearbox from the sun gear S to the carrier CUSC is displayed.

Inputs

Name Description Connection line type
S Port for connecting the sun gear shaft Rotary mechanics
R Port for connecting the ring gear Rotary mechanics
C Port for connecting the carrier (carrier) Rotary mechanics

Outputs

Name Description Connection line type
Q Power losses due to bearing friction and gear meshing (efficiency) Mathematical

Properties

Title Parameter Description By default Data type
Kinematics A group of properties that set the kinematic parameters of motion
Number of ring gear teeth Zr Number of ring gear teeth 180 Целое
Number of sun gear teeth Zs Number of sun gear teeth 60 Целое
Number of teeth of the internal planet gears Zpi Number of teeth of the internal planet gears 60 Целое
Number of teeth of the external planet gears Zpe Number of teeth of the external planet gears 60 Целое
Gear ratio Ws/Wc Usc The gear ratio of the gearbox from the sun gear S to the carrier C. The property is displayed in the "read-only" mode and is for reference only 2 Вещественное
Gear ratio Wr/Wc Urc The gear ratio of the gearbox from the ring gear R to the carrier C. The property is displayed in the "read-only" mode and is for reference only 0.667 Вещественное
Losses A group of properties that define loss parameters
Power threshold, W Q_th The value of the power transmitted through the block, below which the efficiency is increased to achieve the stability of the numerical solution 0.1 Вещественное
Sun/Planet pair efficiency Nu_sp Sun/Planet pair efficiency 1 Вещественное
Planet/Planet pair efficiency Nu_pp Planet/Planet pair efficiency 1 Вещественное
Ring/Planet pair efficiency Nu_rp Ring/Planet pair efficiency 1 Вещественное
Coefficient of the carrier bearing friction, Nm·s/rad B_C Coefficient of the carrier bearing friction 0 Вещественное
Coefficient of the ring gear bearing friction, Nm·s/rad B_R Coefficient of the ring gear bearing friction 0 Вещественное
Coefficient of the sun gear bearing friction, Nm·s/rad B_S Coefficient of the sun gear bearing friction 0 Вещественное
Coefficient of the bearing friction in the planet gears, Nm·s/rad B_P Coefficient of the bearing friction in the planet gears 0 Вещественное
Time constant for solving the nonlinear algebraic equation, s Tau The time constant for solving the nonlinear algebraic equation. Used in blocksPlanetary gear Sun-Planet, Planetary gear Planet-Planet and Planetary gear Ring-Planet to solve the coupling equation 0.1 Вещественное

Parameters

Name Parameter Description Data type
Power losses, W Q Power losses due to bearing friction and gear meshing (efficiency) Вещественное
Sun gear A group of parameters displaying the parameters of the sun gear
Angular speed, rad/s Ws Angular speed value at the port "S" Вещественное
Torque, Nm Ts Torque transmitted from the gearbox to the connected blocks Вещественное
Power, W Qs Power transmitted from the gearbox to the connected blocks. A negative value means that the sun gear is the driving element of the gearbox Вещественное
Carrier A group of parameters displaying the parameters of the carrier
Angular speed, rad/s Wc Angular speed value at the port "C" Вещественное
Torque, Nm Tc Torque transmitted from the gearbox to the connected blocks Вещественное
Power, W Qc Power transmitted from the gearbox to the connected blocks. A negative value means that the carrier is the driving element of the gearbox Вещественное
Ring gear A group of parameters displaying the parameters of the ring gear
Angular speed, rad/s Wr Angular speed value at the port "R" Вещественное
Torque, Nm Tr Torque transmitted from the gearbox to the connected blocks Вещественное
Power, W Qr Power transmitted from the gearbox to the connected blocks. A negative value means that the ring gear is the driving element of the gearbox Вещественное

Examples

Examples of block application:
