| Vector | C | |
| в палитре | на схеме |

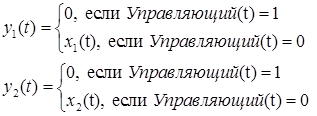

The block implements the function of the controlled key according to the following algorithm:
where x1(t), x2(t) are the input signals of the block (or signal vectors), y1(t), y2(t) are the output signals of the block (or signal vector). The control signal enters the unit from above. During the calculation process the block image changes depending on the presence of the control signal: in normal position the key is closed, i.e. when the control signal is applied the key is opened:
Рисунок 1. Control signal = 0
Рисунок 2. Control signal = 1
Входные порты
- Control - switching control signal;
- Value1 - the first input signal of the unit, x1;
- Value2 is the second input signal of the block x2.
Выходные порты
- output 1 - the first block output, y1;
- output 2 - the second block output, y2.
Свойства
none
Параметры
none
Прим.: By default, the block generates a scalar output signal.
