DBF (deadband forming)

| Vector | C |
in the palette on the schematic

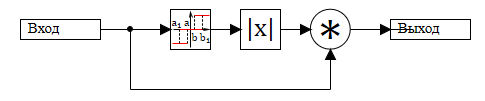

The block implements a linear link algorithm with a gain factor of 1 and a deadband set in the block parameters. The block is a submodel. To view the structure of the algorithm, right-click Actions → Enter to the submodel:

Inputs

  • input - input signal port.

Outputs

  • output is equal to the input signal if it is beyond the deadband (taking into account the return zone). Equal to 0 if the input signal is within the deadband.

Properties

  • Deadband — absolute value of the upper and lower switching limits for the "Relay with deadband" block.
  • Return zone — value of the return zone for the upper and lower switching limits.

Parameters

none
