Linear link with saturation and deadband
 |
 |
| Vector | C | |
| in the palette | on the schematic |

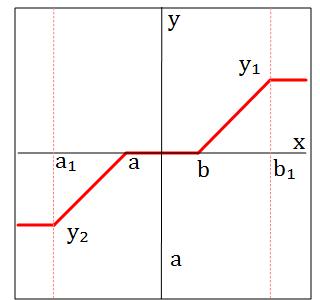

The block implements conversion of input signals by means of a single nonlinear static characteristic of the "Linear with saturation and deadband" type according to the following algorithm:
where x(t) is the vector of input signals; y(t) is the vector of output signals; k1=y1/(a1-a); k2=y2/(b1-b).
where x(t) is the vector of input signals; y(t) is the vector of output signals; k1=y1/(a1-a); k2=y2/(b1-b).
Inputs
- input - input signal port.
Outputs
- output - port of output converted signal.
Properties
- Lower limitation boundary – a1.
- Deadband lower limit – a.
- Deadband upper limit – b.
- Upper limitation boundary – b1.
- Function lower value – y1.
- Function upper value – y2.
Parameters
none
Note:
in order to implement vector processing, the converted signals must be "compressed" into a vector input signal by means of a typical block Multiplexer.
