Relay with deadband

		`\| Vector \| C \| ST \|`
`в палитре`	`на схеме`	`\| Vector \| C \| ST \|`

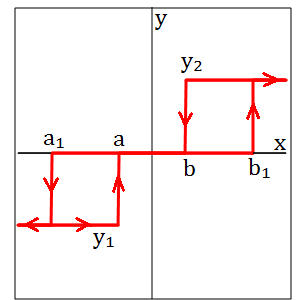

The block implements conversion of input signals by means of a single nonlinear static characteristic of the "relay ambiguous with deadband" type under different initial conditions according to the following algorithm:

where x(t) is the vector of input signals; y(t) is the vector of output signals; Δt is the previous time step of integration; a₁, a, b, b₁, y₁, y₁ are the parameters of the static characteristic. In the presence of "overlap" of the return zones, the switching process is determined taking into account the previous state of the relay.

Входные порты

input - input signal port.

Выходные порты

output - port of output converted signal.

Свойства

Lower switching limit – a₁ – the minimum value of the input signal, at which the value at the output is equal to the lower value;
Deadband lower limit – a.
Deadband upper limit – b.
Upper switching limit – b₁ – the maximum value of the input value at which the value at the output is equal to the upper value;
Lower value of the function – y₁ – the minimum value at the block output;
Upper value of the function – y₂ – the maximum value at the block output;
Initial conditions (0;1) – initial condition of the relay; 0 – OFF, 1 – ON

Параметры

none

Прим.: in order to implement vector processing, the converted signals must be "compressed" into a vector input signal by means of a typical block Multiplexer.
