Gap
 |
 |
| Vector | C | |
| in the palette | on the schematic |

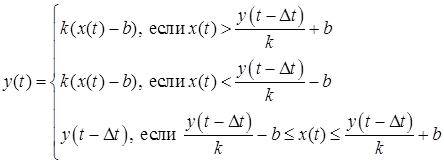

The block implements conversion of input signal vector by means of a single nonlinear static characteristic of the "Gap" type under different initial conditions according to the following algorithm:
where x(t) is the input signal vector; y(t) is the output signal vector, Δt is the previous time step of integration.
where x(t) is the input signal vector; y(t) is the output signal vector, Δt is the previous time step of integration.
Inputs
- input - input signal.
Outputs
- output - output signal.
Properties
- Half the width of the gap zone – b;
- Gain factor – k;
- Initial conditions – vector of initial conditions y(0).
Parameters
none
