Linear with deadband
 |
 |
| Vector | C | |
| in the palette | on the schematic |

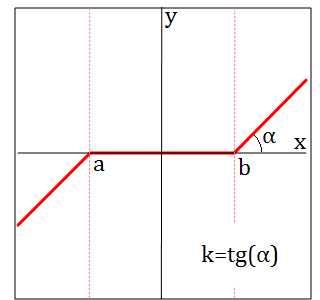

The block implements conversion of input signals by means of a single nonlinear static characteristic of the "Linear with deadband" type according to the following algorithm:
where x(t) is the vector of input signals, y(t) is the vector of output signals, k is the gain factor.
where x(t) is the vector of input signals, y(t) is the vector of output signals, k is the gain factor.
Inputs
- input - input signal port.
Outputs
- output - port of output converted signal.
Properties
- Lower boundary of the argument – parameter a.
- Upper boundary of the argument – parameter b.
- Gain factor – parameter k.
Parameters
none
Note:
in order to implement vector processing, the converted signals must be "compressed" into a vector input signal by means of a typical block Multiplexer.
