Input signal hysteresis
 |
 |
| Vector | C | |
| in the palette | on the schematic |

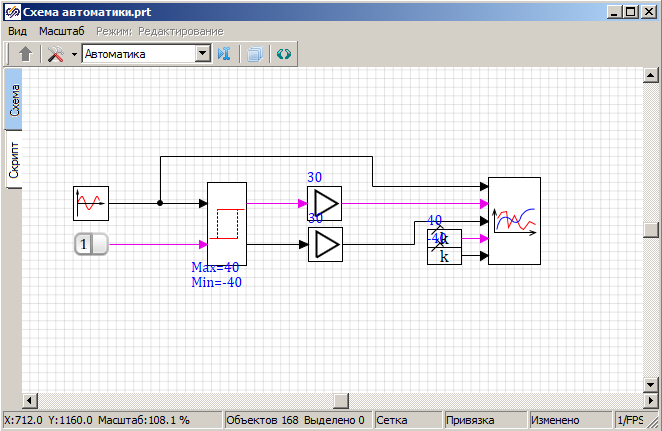

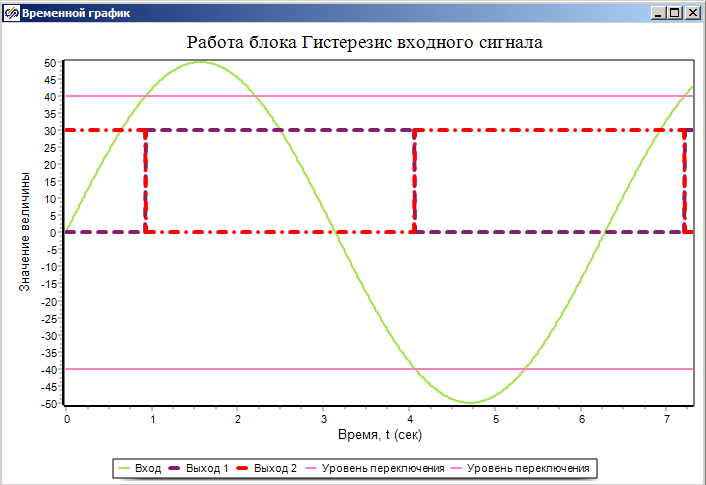

The block with the help of a relay ambiguous link of the Hysteresis type forms two signs at the output — whether the signal at the first input exceeded the upper limit, or whether it decreased to a level less than the lower limit. In this case, the presence of a signal at the second logical input is taken into account — in the absence of a signal on it, the block "does not work" and both outputs are equal to logical zero. The block has one analog input and one binary input - permission for operation. The outputs are discrete, the second of them is inverse. The dependence of the outputs on the analog input is non-linear, with the hysteresis:
Inputs
- input 1 - the input signal;
- input 2 - permission for operation.
Outputs
- output 1 - the upper limit is exceeded;
- output 2 - the signal is below the lower limit.
Properties
- upper limit - the value of the upper limit of the signal;
- lower limit - the value of the lower limit of the signal.
Parameters
none
