Linear with variable limitation

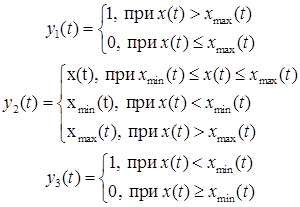

The block implements a linear link algorithm with gain equal to 1 and with signal limitation that varies depending on the input signals on the second and third input ports. Operation algorithm of the block:

where y₁(t), y₂(t), y₂(t) are the signals at the output ports, x(t) is the signal at the first input port (left), x_min(t), x_max(t) are the signal at the second and third input ports (top). The block is a submodel. To view the structure of the algorithm, right-click Actions → Enter to the submodel:
