Fracture
 |
 |
| Vector | C | |
| in the palette | on the schematic |

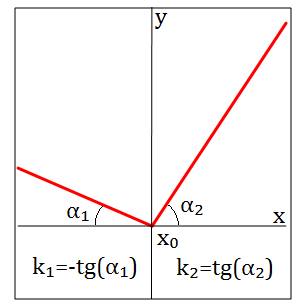

The block is vectorized. It implements conversion of input signals by means of a single nonlinear static characteristic of the "Fracture" type according to the following algorithm:
Where x(t) is the input signal vector, y(t) is the output signal vector.
Where x(t) is the input signal vector, y(t) is the output signal vector.
Inputs
- input - input signal.
Outputs
- output - output signal.
Properties
- K at x < 0 – coefficient k1.
- K at x > 0 – coefficient k2.
- Fracture point – x0.
Parameters
none
Note:
in order to implement vector processing, the converted signals must be "compressed" into a vector input signal by means of a typical block Multiplexer.
